Bespoke Recessed Tray - Recessed Tray

Overview

R&B offer a full range of bespoke UK manufactured recessed access cover for multiple infills and applications.

Infills include:

  • Vinyl Flooring
  • Screed
  • Resin bound Infill
  • Carpet tiles
  • Shallow slabs i.e Sandstone or porcelain

Applications Include:

  • Internal applications I.e Commercial Kitchens/Bathrooms
  • Playgrounds
  • Hospitals
  • Domestic property
  • Showrooms

Frame Sizes & Spec

  • Clear opening (mm): Various –
  • Overall Top of Frame (mm) = Clear opening + 80mm
  • 60mm/80mm/100mm Overall Frame Depth
  • Internal Tray Depth
  • Recommended Rebate (W) – 100mm (D) – 75mm
  • 50mm build in lugs on longest side
  • Loadings Available – FACTA AA (5tonneGLVW), AAA (10tonne), B (25tonne), D(44tonne)

Any Special Size Available on Request. 2 part recommended up to 1.15M2 Only.

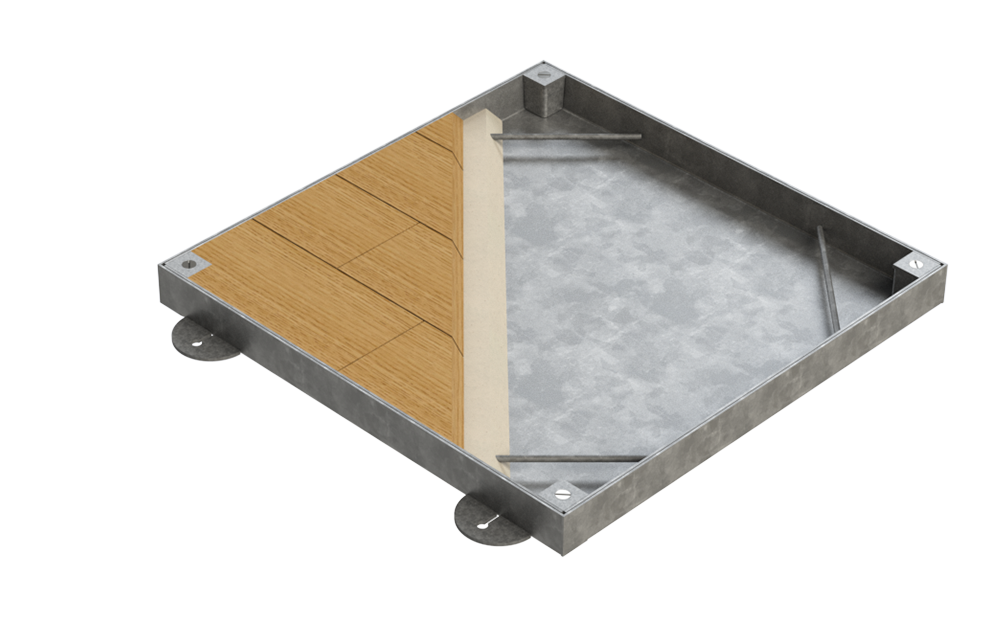

GALV TRAY SINGLE WOOD
SINGLE TRAY RESIN

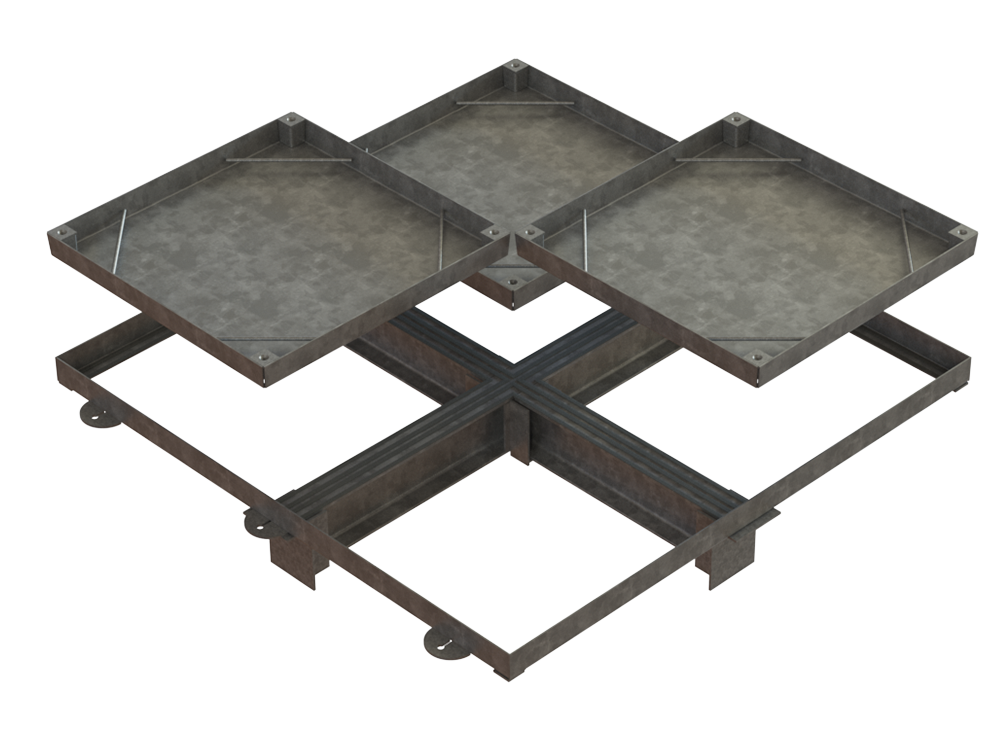

Multi Part Tray exp

Features

  • Tie Bars In Base
  • Recessed for Concrete and Floor Finish Infill (Vinyl, Wood, Carpet, Tile or 30mm Slab).
  • Double Neoprene Seal (Gas and Airtight Seal to Atmospheric Pressure)
  • 4 Screw Locking
  • M10 Threaded Lifting Points
  • Galvanising certified to BS EN ISO 1461.

Bespoke Options

  • Security Locking (Torx-Pin Screws).
  • Stainless Steel Edge or Brass Edge.
  • Full Stainless Steel Grades 304 or 316.
  • Shallow Tray (32mm Deep – 40mm o/a Depth).
  • Square to Round Opening.

Certifications

FACTA Certificate No. 10153
