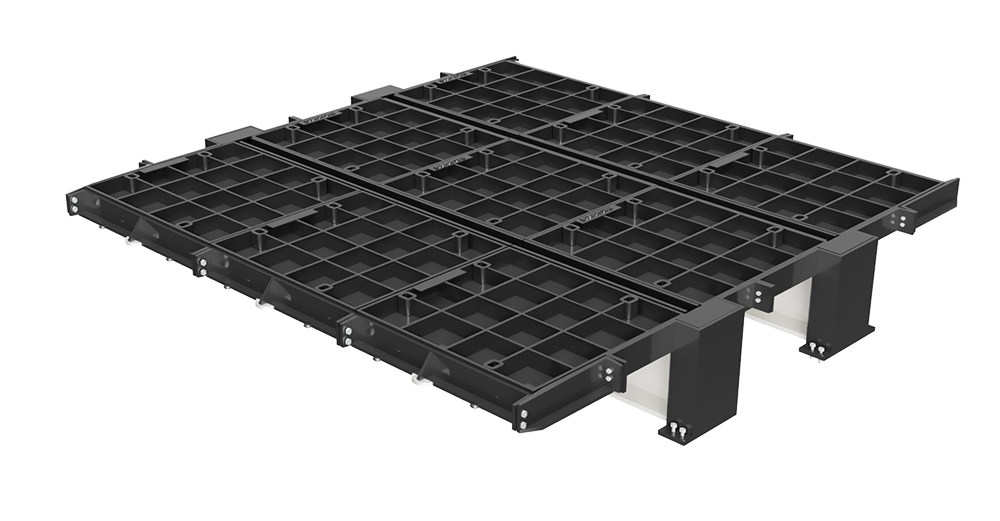

Concrete Infill Multi Part Ductile iron F900 - F900 Concrete Infill Code: MPCIF
Overview
A range of Machine Seated Ductile iron Multi-Part and single part Concrete infill F900 Access Covers and frames suitable for a wide range of applications including airports, docks, data centres, water treatment works and other major infrastructure projects.
Standard Sizes
| CODE | CLEAR OPENING | OVER BASE | FRAME HEIGHT | NO.OF | LOADING CLASS | |||||
| AXB (MM) | CXD (MM) | E (MM) | COVERS | kN | ||||||
| PS-1 | 600×900 | 880×1180 | 145 | 1 | 400 | |||||
| PS-2 | 600×750 | 880×1030 | 145 | 1 | 400 | |||||
| PS-3 | 750×900 | 1000×1180 | 145 | 1 | 400 | |||||
| PS-4 | 1320X900 | 1580X1180 | 145 | 2 | 400 | |||||
| PS-5 | 1980X900 | 2290X1180 | 145 | 3 | 400 | |||||
| PS-6 | 750X750 | 1000X1020 | 145 | 1 | 400 | |||||
*many more size combinations available on request.
Features
- Manufactured to BS EN124:2015.
- Multiple clear openings.
- BS Standard lifting keys.
- Ductile iron Covers and Frames.
- Structural Steel removable beams.
- Machine Seated F900 loading.
Bespoke Options
- Badging (to suit customer requirements).
- Paint coating.
Certifications
