Twin Tray Heavy Duty - Twin Deep Infill Tray Code: HDRTDSL

Overview

  • o/a Top of Frame = c/o + 110mm.
  • 50mm Build in Lugs on Longest Sides.
  • 90mm o/a Frame Depth.
  • 80mm Tray Depth.
  • Recommended Rebate = W-120mm D-100mm.
  • Tie Bars in Base.
  • Double Neoprene Seal (Gas and Airtight Seal to Atmospheric Pressure).
  • 4 Screw Locking.
  • M10 Threaded Lifting Points.
  • Tray Recessed for Concrete and Floor Finish Infill (Vinyl, Wood, Carpet, Tile or 30mm Slab).
  • Loading = FACTA D – 44tonne GLVW – 11.5tonne SMWL (Equivalent to EN 124 D400) – Once Filled.
  • Galvanising certified to BS EN ISO 1461.
  • Any Special Size Available on Request. 1 Part Recommended Upto 0.6m2 Only.

Available Sizes:

Clear Opening (mm)Depth (mm)Loading
900×900100FACTA D
1000×1000100FACTA D
1200×600100FACTA D
1200×750100FACTA D
1500×750100FACTA D
1200×900100FACTA D

See BESPOKE RECESSED TRAYS for bespoke manufacture products

Twin Deep Infill

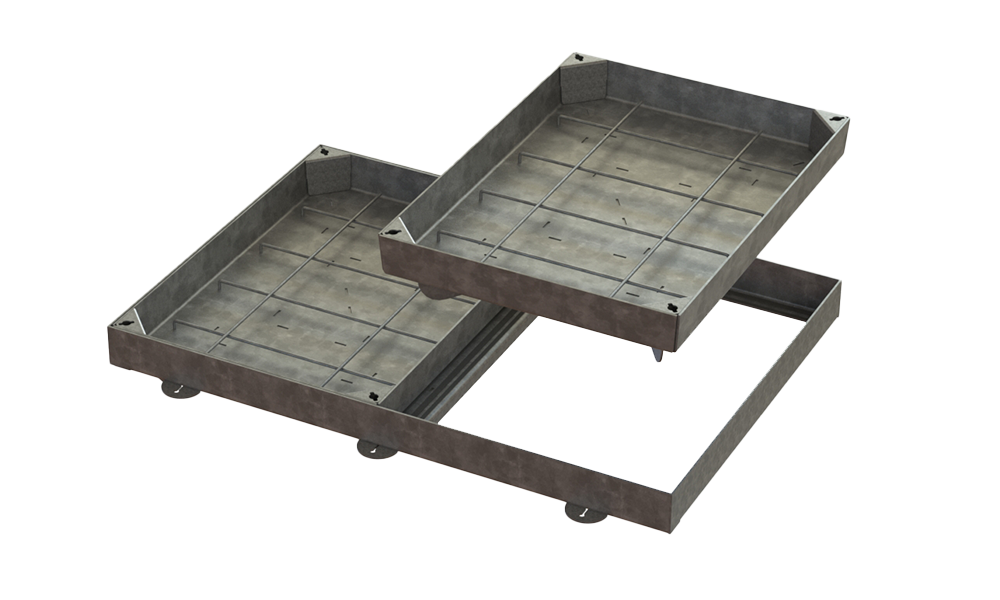

Twin Deep Infill 2

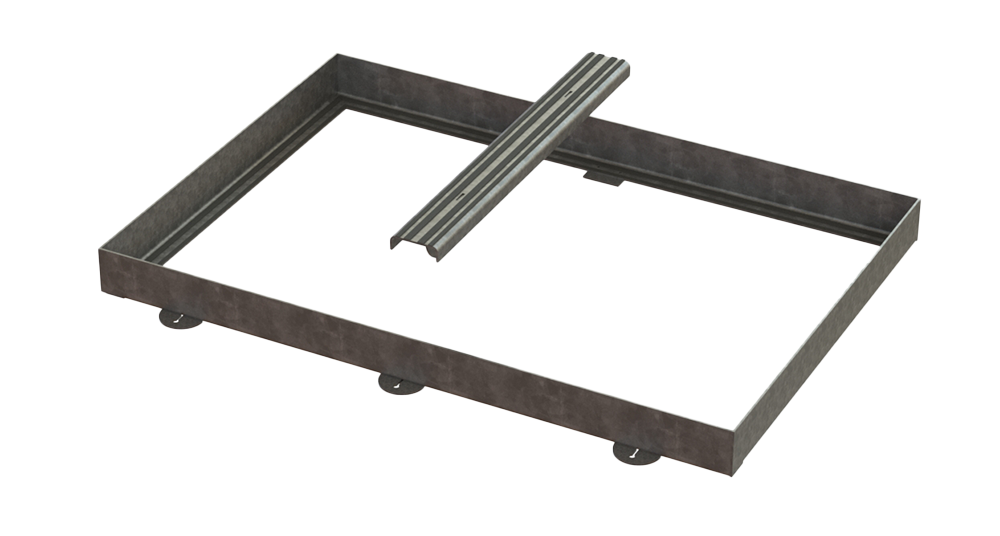

Twin Deep Infill 3

Features

  • Tie Bars In Base
  • Recessed for Concrete and Floor Finish Infill (Vinyl, Wood, Carpet, Tile or 60mm Slab).
  • Double Neoprene Seal (Gas and Airtight Seal to Atmospheric Pressure)
  • 4 Screw Locking
  • Galvanising certified to BS EN ISO 1461.

Bespoke Options

  • Security Locking (Torx-Pin Screws).
  • Stainless Steel Edge or Brass Edge.
  • Full Stainless Steel Grades 304 or 316.
  • Square to Round Opening.
  • Deep Tray  (100mm Deep 120mm or 150mm )

Standards & Certification

CodeSpecification
Galvanising:BS EN ISO 1461

Certifications

FACTA Certificate No. 10153

Downloads
