Compass Estate - B125 Duct Access Chamber System - Modular Duct Access Chamber Code: COM
Compass Estate Duct access chamber system is a range of innovative structural access chambers for underground installations. Ideal for all ducted network applications where access chambers are required for inspection and maintenance. Compass Estate is suitable for all footway and Light Traffic B125 applications

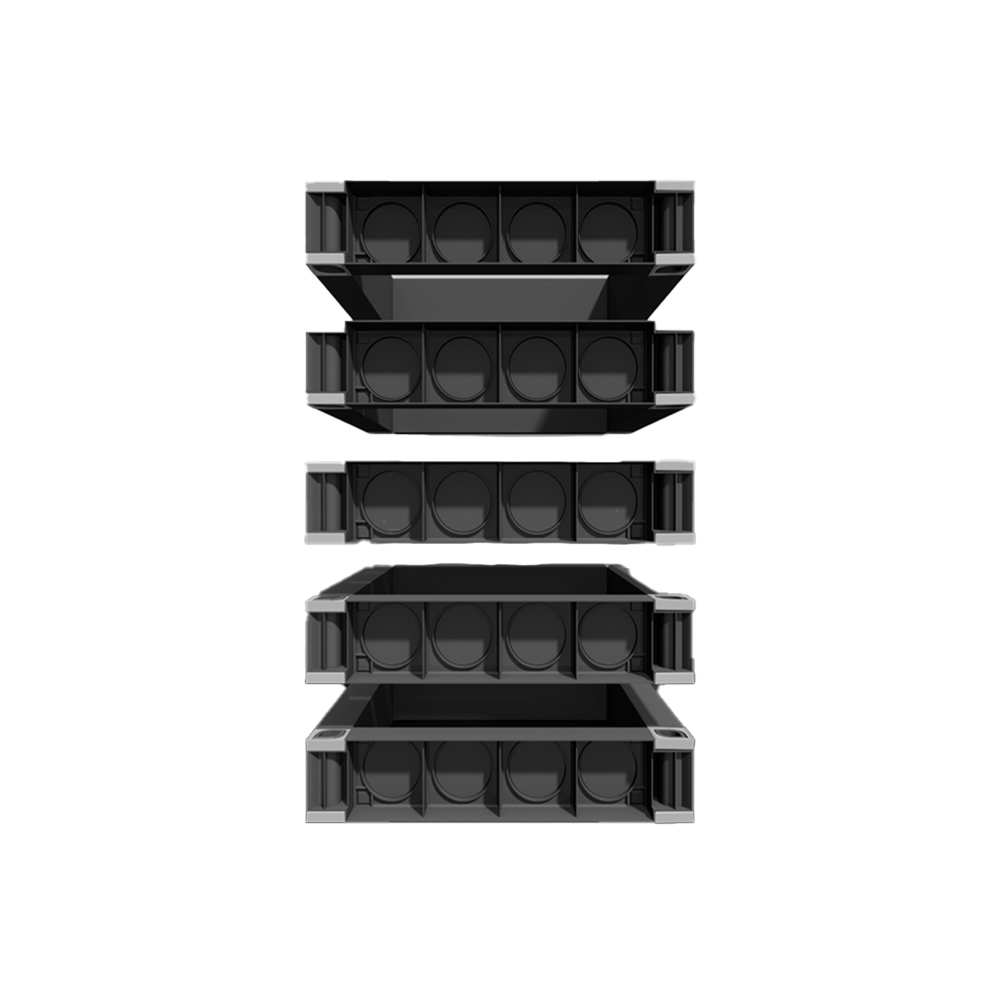

Compass Estate duct access chamber sections are 150mm Deep with a single reinforced wall design. This makes them lightweight and easy to install. Compass Estate components are all manufactured from 100% recycled polypropylene which is highly resistant to attack from acids, alkalis and other forms of chemical erosion.
See below for available sizes.
Benefits of the Compass Estate Duct Access Chamber System:
- Eliminates the need for a concrete surround
- 150mm sections lightweight and easy to handle

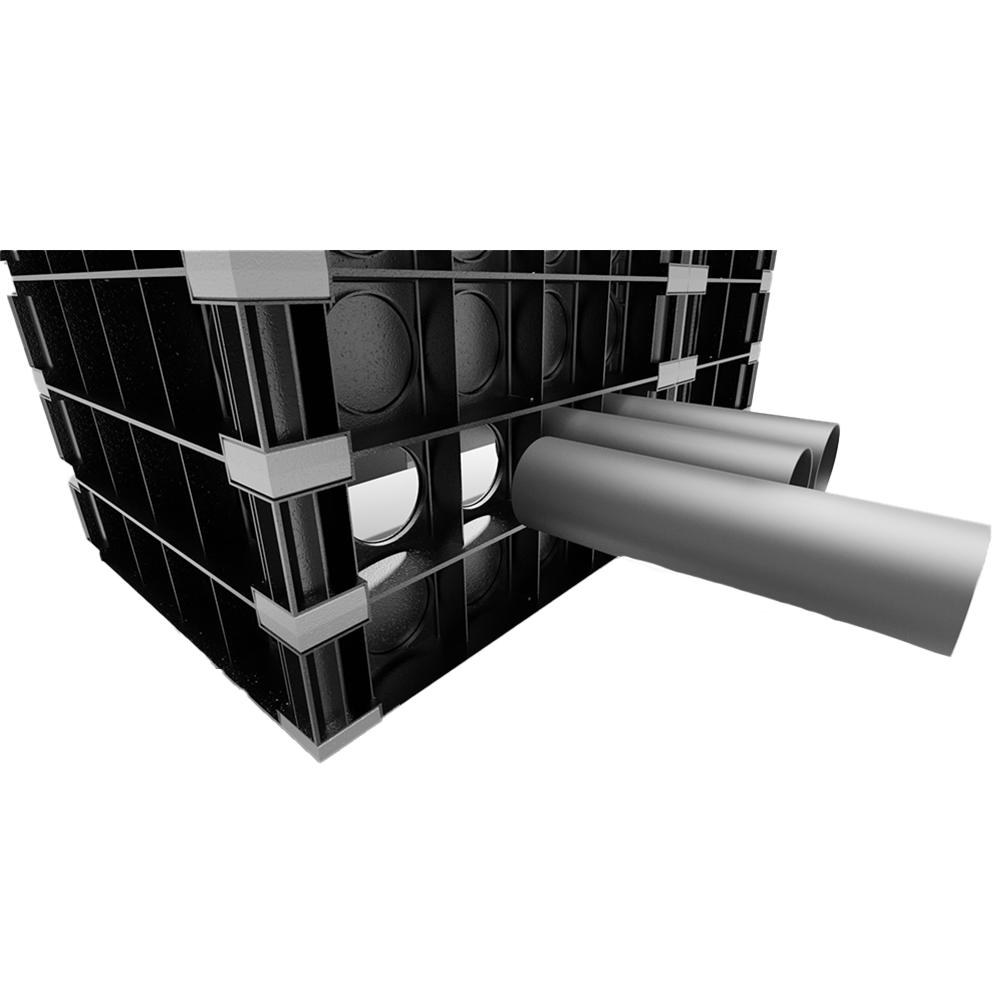

- 110mm Duct entry knockouts
- Made from 100% recycled polypropylene
- Can be reinforced to meet D400 loading
- EV Charging
- LV/HV Power
- Drawpits & Catchpits
- Valve & Meter Chambers
- Highway MCX chambers & Rail Chambers
No bespoke options are available for this product.
