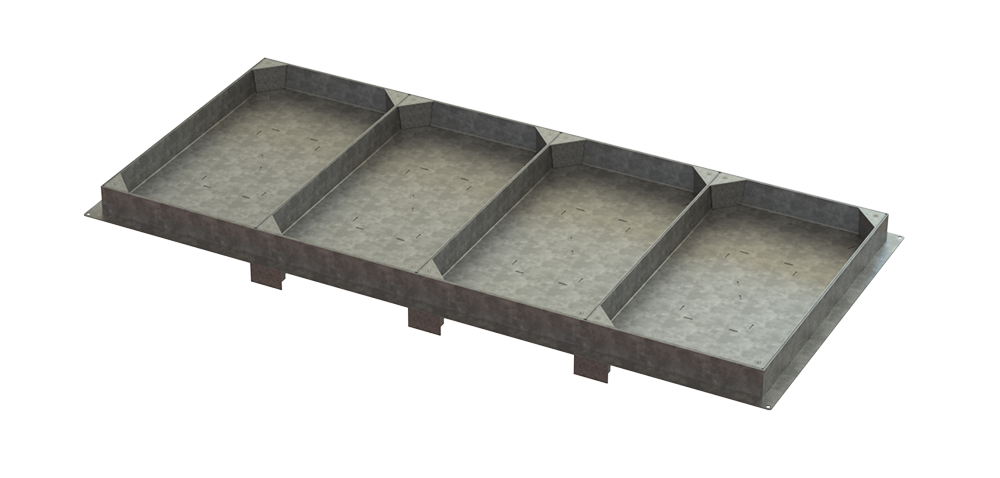

Duct Run Tray Heavy Duty - Duct Run Deep Infill Tray Code: HDRTDSL
Overview
- o/a Top of Frame = c/o + 110mm.
- 50mm Build in Lugs on Longest Sides.
- 90mm o/a Frame Depth.
- 80mm Tray Depth.
- Recommended Rebate = W-120mm D-100mm.
- Tie Bars in Base.
- Double Neoprene Seal (Gas and Airtight Seal to Atmospheric Pressure).
- Multi Screw Locking.
- M10 Threaded Lifting Points.
- Tray Recessed for Concrete and Floor Finish Infill (Vinyl, Wood, Carpet, Tile or 30mm Slab).
- Loading = FACTA D – 44tonne GLVW – 11.5tonne SMWL (Equivalent to EN 124 D400) – Once Filled.
- Galvanising certified to BS EN ISO 1461.
- Any Special Size Available on Request
Features
- Tie Bars In Base

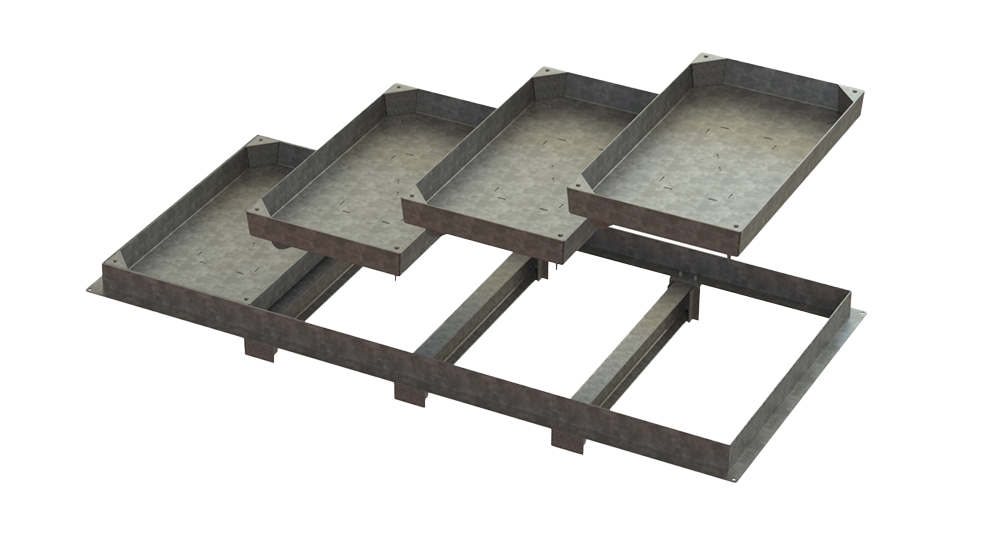

- Removable support Beams
- Recessed for Concrete and Floor Finish Infill (Vinyl, Wood, Carpet, Tile or 60mm Slab).
- Double Neoprene Seal (Gas and Airtight Seal to Atmospheric Pressure)
- Mutli Screw Locking
- Galvanising certified to BS EN ISO 1461.
Bespoke Options
- Security Locking (Torx-Pin Screws).
- Stainless Steel Edge or Brass Edge.
- Full Stainless Steel Grades 304 or 316.
- Square to Round Opening.
- Deep Tray (100mm Deep 120mm or 150mm )
- M10 Threaded lifting points
Standards & Certification
| Code | Specification |
|---|---|
| Galvanising: | BS EN ISO 1461 |
