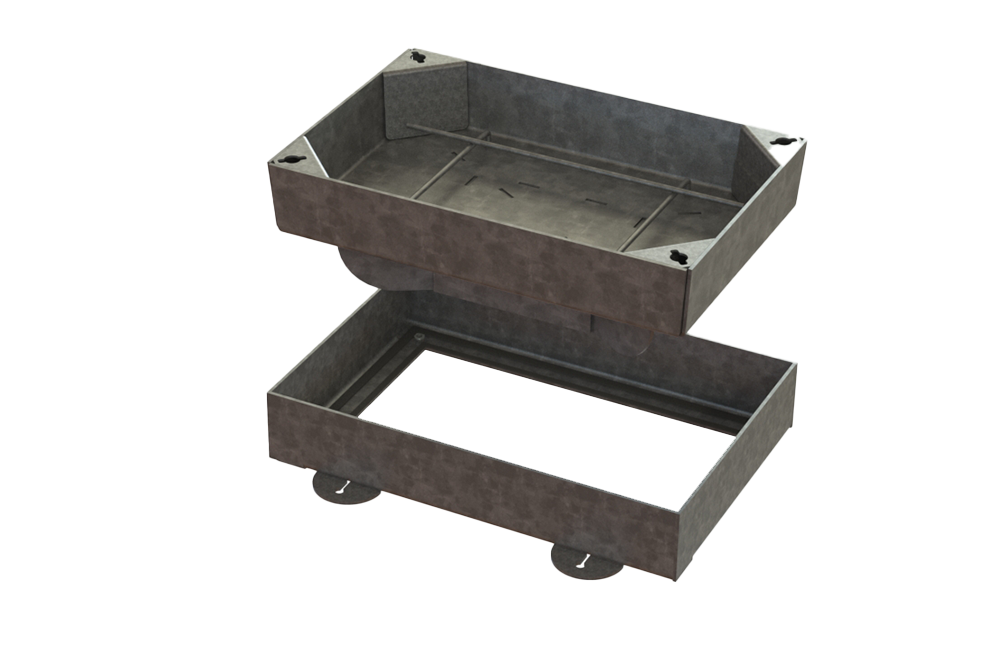

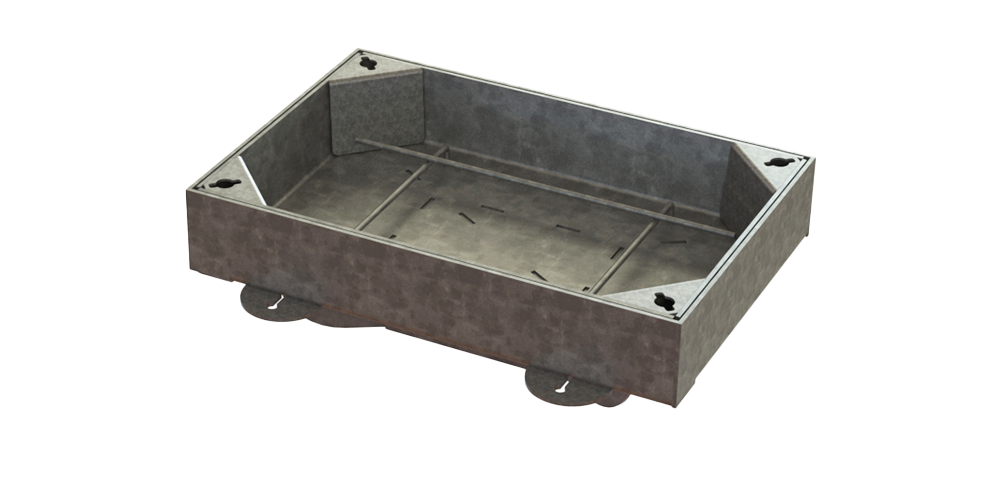

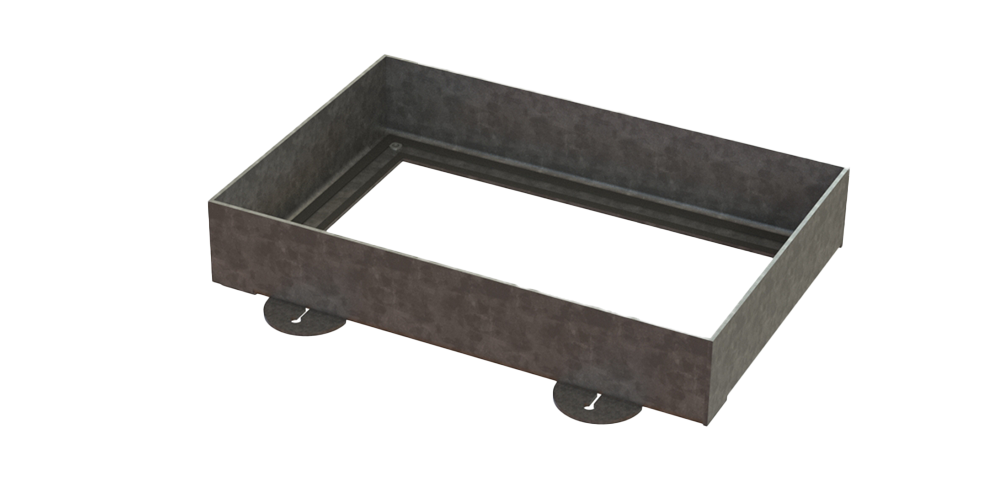

Single Tray Heavy Duty - Single Deep Infill Tray Code: HDRTDSL
Overview
- o/a Top of Frame = c/o + 110mm.
- 50mm Build in Lugs on Longest Sides.
- 90mm o/a Frame Depth.
- 80mm Tray Depth.
- Recommended Rebate = W-120mm D-100mm.
- Tie Bars in Base.
- Double Neoprene Seal (Gas and Airtight Seal to Atmospheric Pressure).
- 4 Screw Locking.
- Tray Recessed for Concrete and Floor Finish Infill (Vinyl, Wood, Carpet, Tile or 30mm Slab).
- Loading = FACTA D – 44tonne GLVW – 11.5tonne SMWL (Equivalent to EN 124 D400) – Once Filled.
- Galvanising certified to BS EN ISO 1461.
- Any Special Size Available on Request. 1 Part Recommended Upto 0.6m2 Only.
Available sizes:
| Clear Opening (mm) | Depth (mm) | Loading |
| 300×300 | 100 | FACTA D |
| 450×450 | 100 | FACTA D |
| 600×450 | 100 | FACTA D |
| 600×600 | 100 | FACTA D |
| 675×675 | 100 | FACTA D |
| 750×600 | 100 | FACTA D |
| 750×750 | 100 | FACTA D |
| 900×600 | 100 | FACTA D |
| 900×900 | 100 | FACTA D |
See BESPOKE RECESSED TRAYS for bespoke manufacture products
Features
- Tie Bars In Base
- Recessed for Concrete and Floor Finish Infill (Vinyl, Wood, Carpet, Tile or 60mm Slab).
- Double Neoprene Seal (Gas and Airtight Seal to Atmospheric Pressure)
- 4 Screw Locking
- Galvanising certified to BS EN ISO 1461.
Bespoke Options
- Security Locking (Torx-Pin Screws).
- Stainless Steel Edge or Brass Edge.
- Full Stainless Steel Grades 304 or 316.
- Square to Round Opening.
- Deep Tray (100mm Deep 120mm or 150mm )
- M10 Threaded lifting Point (heal safe)
