Wem - Traffic Flow Hinged Code: CGD36TFHA

Overview

Clear Opening (mm) : 450 x 450
Over Base (mm) : 577 x 523
Depth (mm) : 100
Grating Type: Traffic Flow Hinged
Waterway: 1210 cm2


BSEN124-2 Access Covers and Frames: D400 – Group 4

D400 gully gratings and frames are designed for use in the kerb side of carriageways and estate roads including pedestrian streets. These Gratings are CD534 Compliant

All D400 gully gratings and frames are certified to the requirements of BSEN124-2

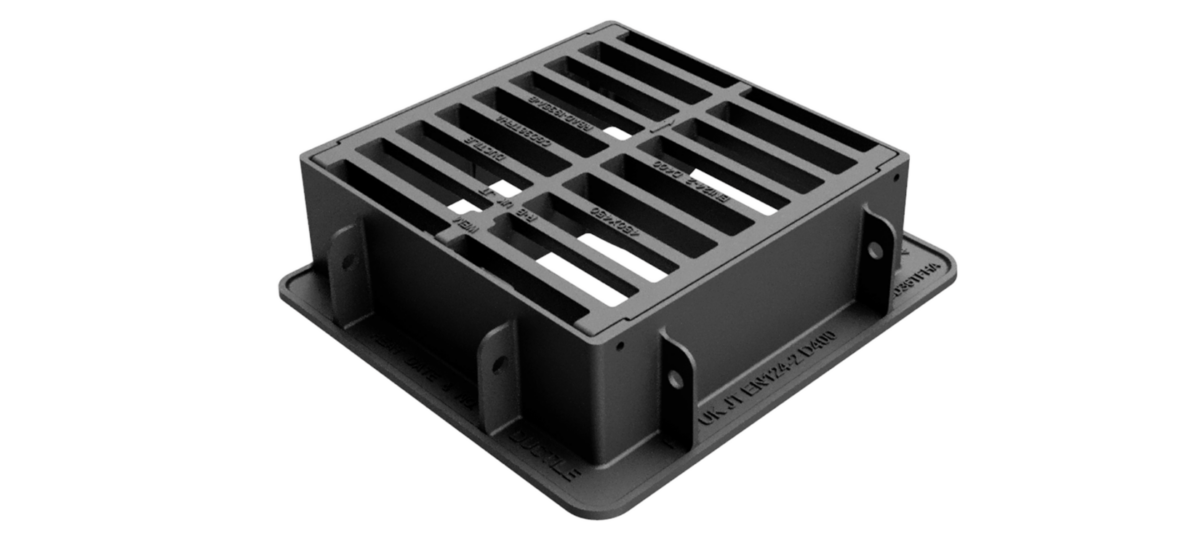

Wem 450 x 450
Wem Open 450 x 450
Wem Open full 450 x 450

Features

  • Traffic Flow Hinged (reversible)
  • Captive Hinged
  • Unique Spring Lock Design
  • CD534 Compliant
  • Black Coated Finish
  • BSI Kitemarked

Bespoke Options

  • Anti Skid coating (60+ PSRV)

Standards & Certification

CodeSpecification
Standard:BSEN124:2015, CD534 V0.1.0 (formerly HA104/09), DMRB
Certification:BSI KITEMARK
Material Grade:GJS-500-7
